Silicon for
intelligent systems

CHIP DESIGN
Three-layer silicon stack with HBM memory and substrate interconnect.

INTERCONNECT
Micro-wire bonding and substrate routing for signal integrity at scale.
Next-generation GPU architecture for AI inference and high-performance rendering.

ESIVO-1 PRO
Silicon architecture built from first principles
for neural computation.
TFLOPS FP16
Mixed-precision tensor operations for training and inference. Sustained throughput at rated TDP with no thermal throttling under continuous load.
TFLOPS FP16
HBM3 memory interface with 819 GB/s per stack.
Four stacks operating in parallel with unified addressing and error correction.
The ESIVO-1 series is built for inference.
the critical moment where trained models become real-time decisions.
We optimize for throughput per watt, not benchmarks.
ESIVO-1 TECHNOLOGY
Deconstructed For Clarity.
Every component in the ESIVO-1 series exists because it serves a specific computational purpose.
Six Independent Engineering Systems Thermal, Cooling, Signal, Power, Compute, Memory Optimized In Isolation, Then Validated As One Architecture Where The Output Of Each Component Is The Exact Input The Next Component Requires.

ESIVO-1 ARCHITECTURE
The ESIVO-1 architecture unifies thermal, cooling, signal, power, compute, and memory into a single integrated stack...
Memory Bandwidth
Four 12-Hi stacks providing 819 GB/s per stack. 3D TSV interconnect with unified addressing and hardware ECC for error-free inference.
48GB HBM3 Memory
Silicon Architecture
Advanced process technology enabling 432 tensor cores in a compact die footprint with improved power efficiency per operation.
7nm Process Node
Thermal management
Vapor Chamber Heatsink
Active cooling
Axial Flow Fan
Memory Stack
HBM3 Memory
14-Layer Compute PCB
Axial Flow Fan
Power System
16-Phase VRM Array
ESIVO RESEARCH
The ESIVO research division operates
independently from product cycles
Every Component In The ESIVO-1 Was A Paper Before It Was A Product.
Silicon Photonics
Exploring optical interconnects for next-generation memory
bandwidth beyond electrical trace limitations.
Optical Bandwidth Target


Sparse Computation
Hardware-optimized matrix operations for 2:4 structured sparsity
with zero accuracy loss in transformer inference.
FLOPS Retention

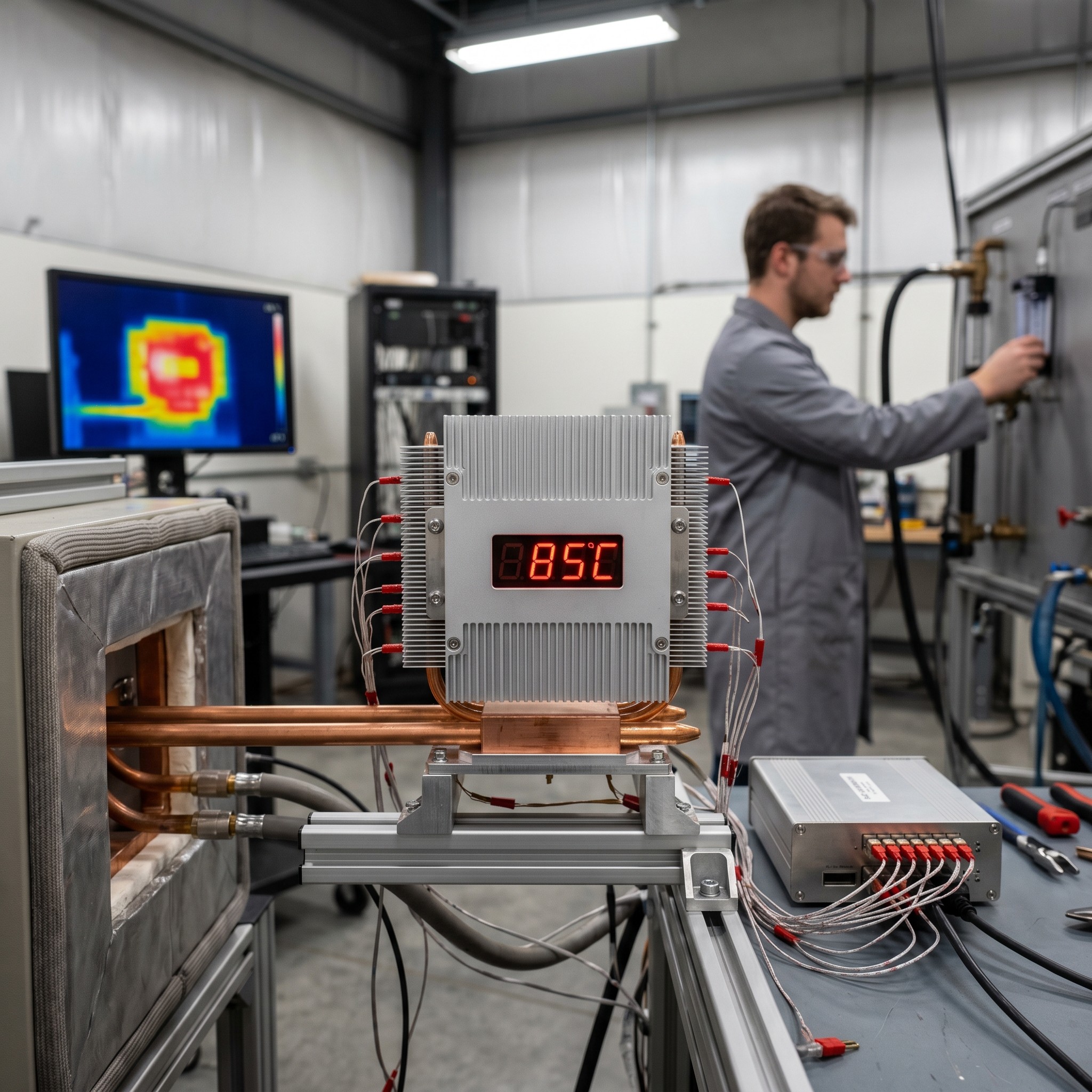

Thermal Dynamics
Vapor chamber simulation and material science for sustained 500W+
thermal envelopes in single-slot form factors.
Target Resistance

Recent Publications
Research Is The Input. Silicon Is The Output. The Peer Review Process Is The Filter
That Ensures Nothing Reaches Production Without Validation.

COMPANY
Building the future of accelerated computing.
Since our founding in 2019, ESIVO has been dedicated to creating GPU architectures that redefine what's possible in AI and high-performance computing.
Team Members
Engineers, researchers, and innovators
from around the world
Series C Funding
Backed by leading venture capital
and strategic investors
$
Founded
Pioneering next-generation GPU
technology since day one
LOCATIONS
Every ESIVO-1 was designed, validated, and manufactured
across three facilities operating under identical quality protocols.
San Francisco
Headquarters
Austin
R&D Center
Taipei
Manufacturing
Our mission is to accelerate the world's most important computational workloads
through innovative hardware design and engineering excellence.
ESIVO builds next-generation GPU
architecture for AI inference and
high-performance rendering,
